SIAECOSYS/FARDRIVER ND72680/ND84680/ND96680 High Power Electric Motorcycle Controller680A BLDC Programmablewith bluetooth For 6000W QSMotor

FarDriver controller is sine wave type controller, which is brushless DC controllerwith self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

Note: 1) This blue shell controller is a sample, we will send the controller shell with random color.

  2) The pic is for reference only, there is no cooling slot under controller.

Combo1.

One set including below kits

1. 1pcs X ND72680 sine wave controller

2. 1pcs X Bluetooth adaptor

Combo2.

One set including below kits

1. 1pcs X ND84680 sine wave controller

2. 1pcs X Bluetooth adaptor

Combo3.

One set including below kits

1. 1pcs X ND96680 sine wave controller

2. 1pcs X Bluetooth adaptor

Key Features

1). All the raw materials are imported, using high-performance Moss tube

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function.(The product does not contain magnetism)

Product Description

ND72680/ND84680/ ND96680 are sine wave controller with waterproofing grade IP67, suit for 6-8kw motors.

For ND72680, the peak voltage is 88V; For ND84680, the peak voltage is 100V; For ND96680, the peak voltage is 115V.

It’s hall version (as default) which suit with hall motors.

It could also support encoders, please check with sales.

ND72680 Spec

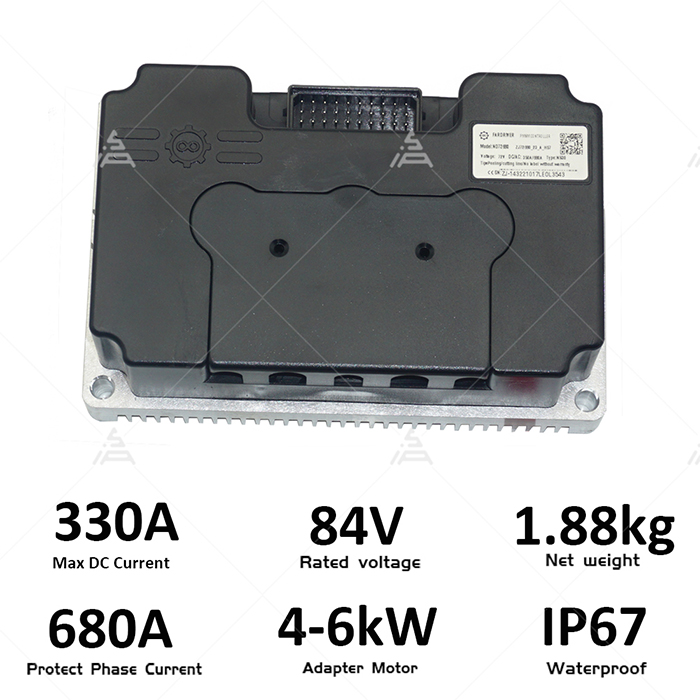

ND84680 Spec

ND96680 Spec

Drawing

Note: The drawing is for reference only, the actual height will be less than 59.7mm because of without cooling slot.

Harness Definition

Adapter Cable

Bluetooth

Software interface（APP）

Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.

Application
